Video to RF Modulator

Electronic Schematics > RF circuit > Video to RF Modulator

---

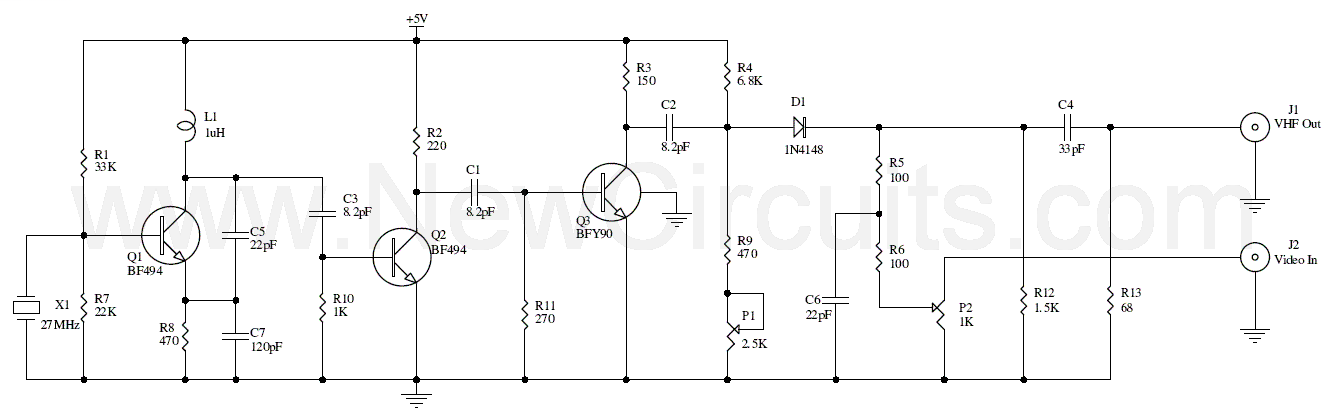

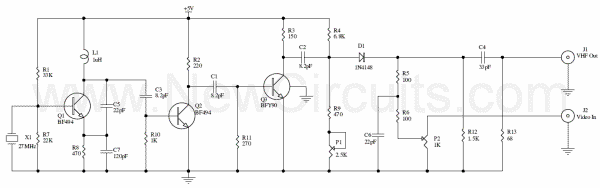

This circuit is a RF modulator which can be used for modulating of video signals. The P1 controls the Light and the P2 controls the contrast of video signal. The RF modulated output signal can be received on the VHF band ( about 189 MHz ). Note that the circuit don't modulate the audio signal of the pictures.

Title: Video to RF Modulator
electronic circuit
Source: unknown
Published on: 2005-08-27
Reads: 4161
Print version:
