Economy short-wave receiver

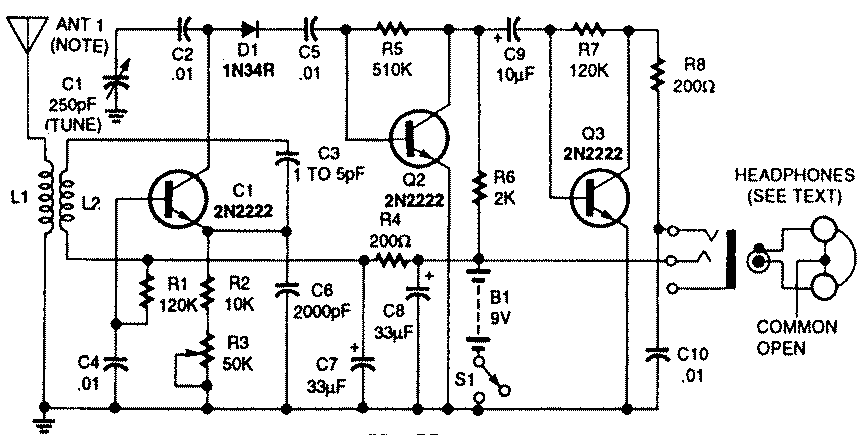

Using three transistors, this receiver covers the range of 6 to 17 MHz. Coils can ba altered to change the range to a lower or higher freqency.
Notes:
- Ant 1 is 100-FT copper wire

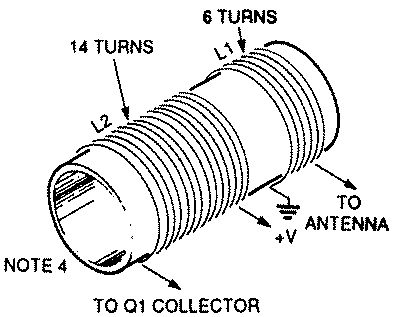

- For coil winding directions see next fig.
Notes:
- All windings are NO,22 insulated stranded coper hookup wire
- 1-in.od plastic pill bottle
- 1-in.od PVC pipe or note 3
Title: Economy short-wave receiver
