Digital Volume Control
Electronic Schematics > Audio > Digital Volume Control

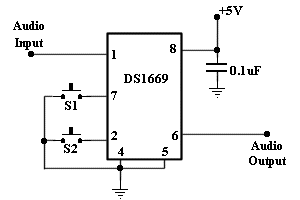

This circuit could be used for replacing your manual volume control in a stereo amplifier. In this circuit, push-to-on switch S1 controls the forward (volume increase) operation of both channels while a similar switch S2 controls reverse (volume decrease) operation of both channels.


A readily available IC from Dallas semiconductor, DS1669 is used here.

FEATURES:

  • Replaces mechanical variable resistors
  • Electronic interface provided for digital as well as manual control
  • Wide differential input voltage range between 4.5 and 8 volts
  • Wiper position is maintained in the absence of power
  • Low-cost alternative to mechanical controls
  • Applications include volume, tone, contrast,brightness, and dimmer control

The circuit is extremely simple and compact requiring very few external components.

The power supply can vary from 4.5V to 8V.

Title: Digital Volume Control
electronic circuit
Source: www.electronic-circuits-diagrams.com
Published on: 2005-02-01
Reads: 3516
Print version: Print version
