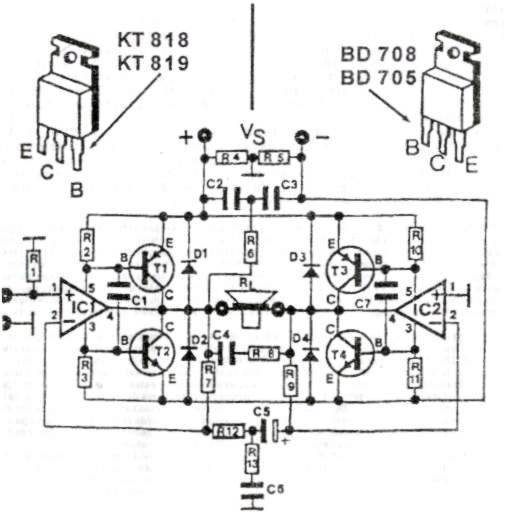

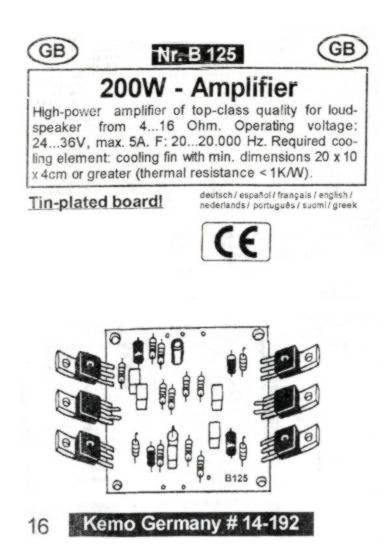

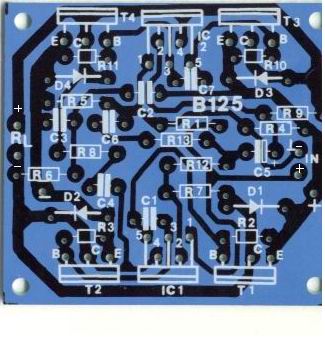

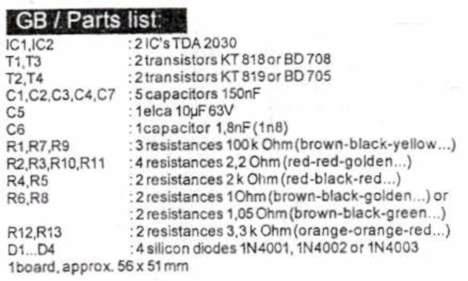

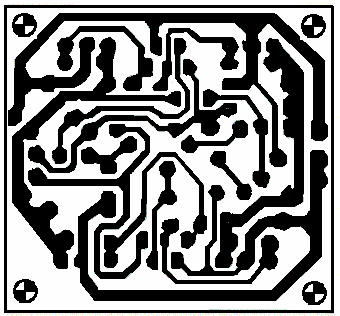

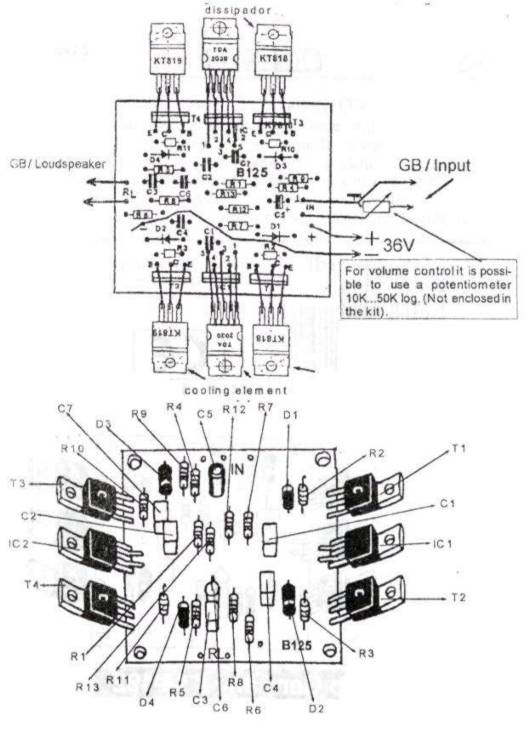

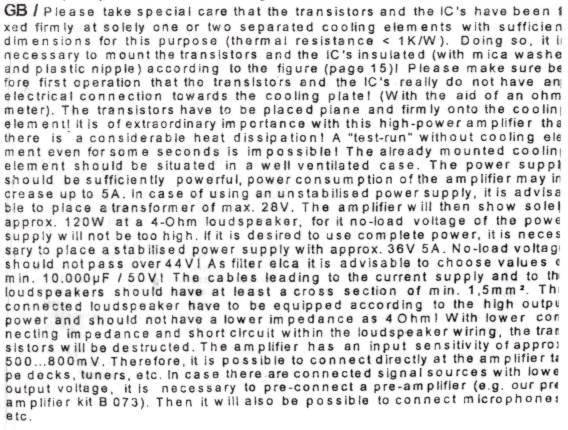

200W audio amplifier

Electronic Schematics > Audio > 200W audio amplifier

---

--== Download Power Supply Schematics for this amplifier ==--

E-mail: steve_filianos@hotmail.com for questions - info.

Title: 200W audio amplifier
electronic circuit
Source: Kemo Kits
Published on: 2005-02-01
Reads: 7181
