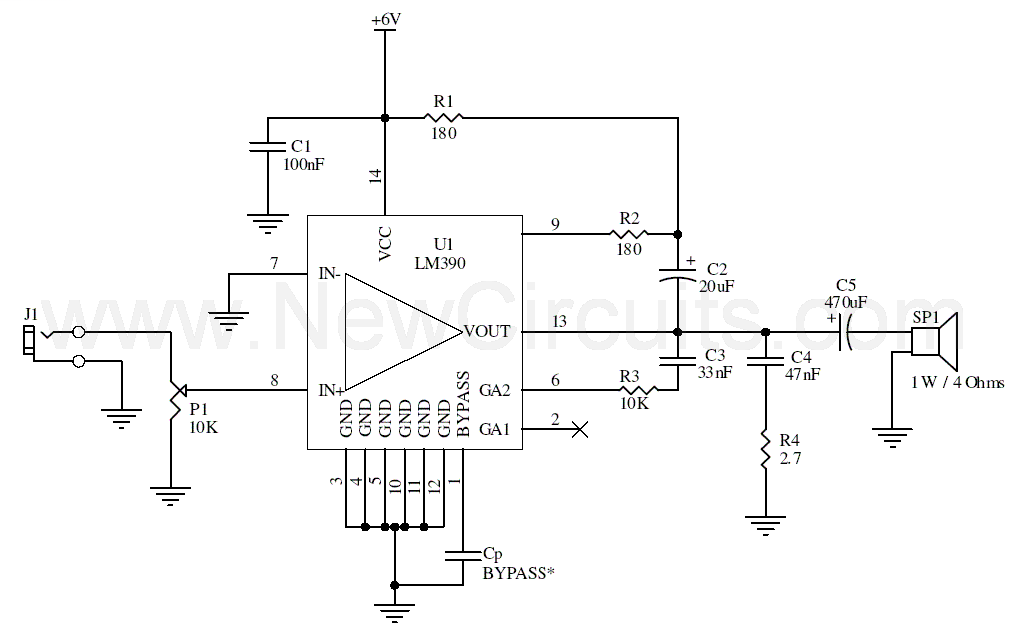

This circuit is a mono audio amplifier that will boost low frequencies as you see at the frequency response. The circuit is suitable for driving a subwoofer speaker for example. The output power of the circuit is about 1 Watt with a 4-ohm speaker.

Title: 1W Bass Power Amplifier
