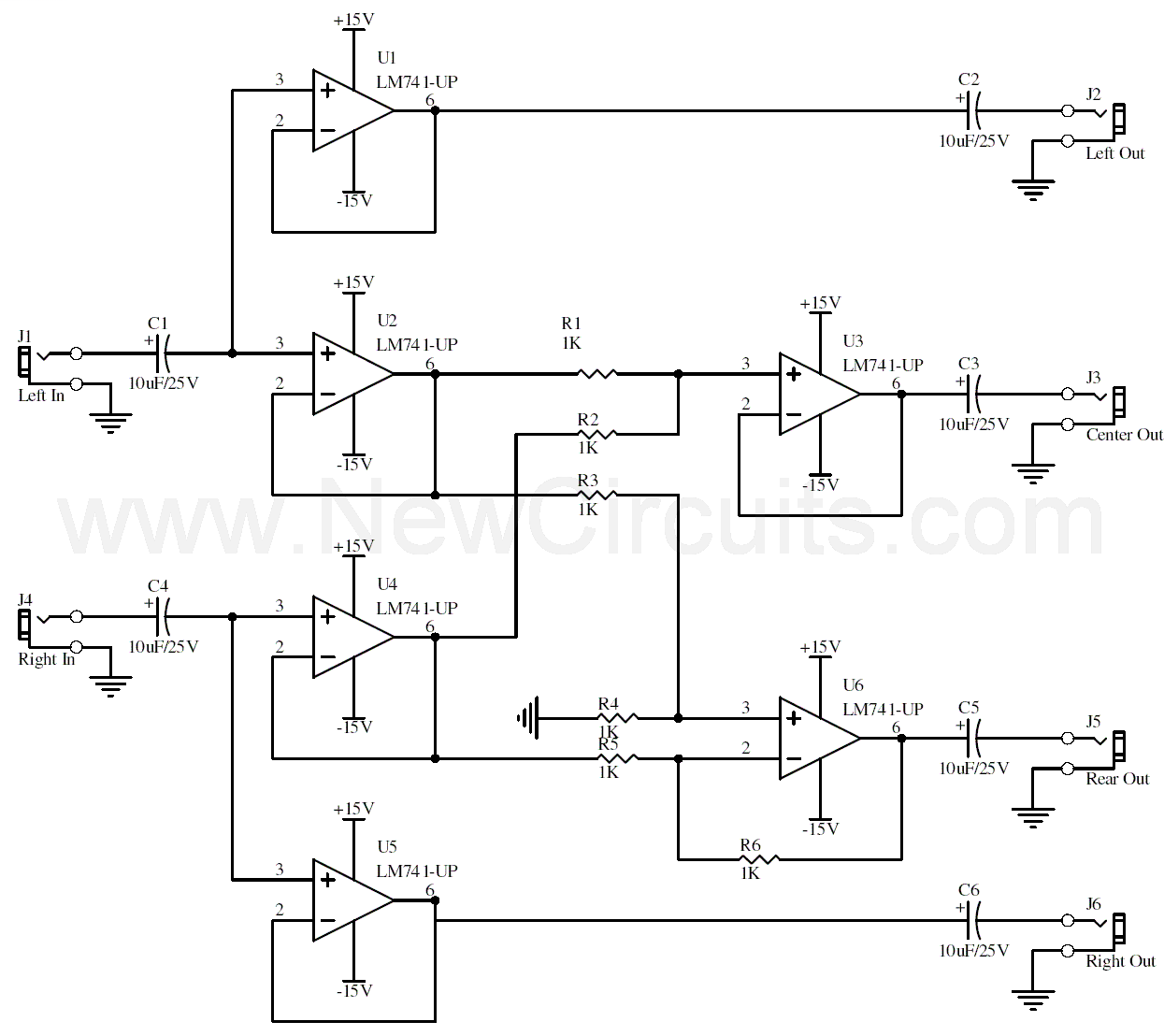

This is a simple surround sound decoder. Left & right outputs of a stereo tape or CD player can be connected to the circuit inputs and 4 outputs of the circuit can be connected to a surround power amplifier or 2 stereo power amplifier.

Title: Surround Sound Decoder
