20W Power Amplifier

Electronic Schematics > Audio > 20W Power Amplifier

---

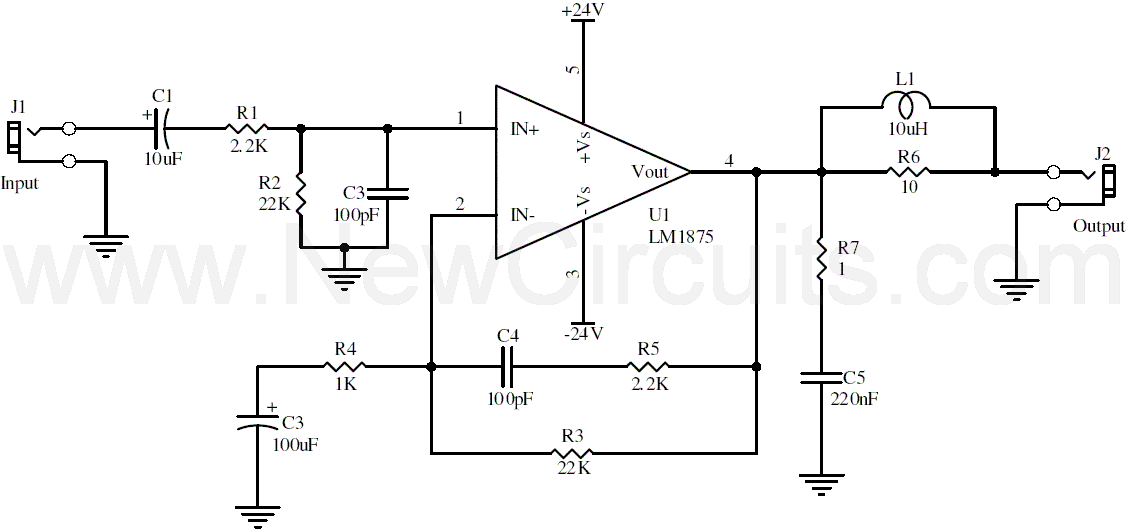

This simple 20 watts audio power amplifier is designed for home-brewed purpose. The L1 should be able to handle a current up to 4A to drive speaker in full load. The distortion is 0.015% @ 1KHz / 20W. This circuit is protected for AC and DC short circuits to ground.

Title: 20W Power Amplifier
electronic circuit
Source: unknown
Published on: 2005-08-27
Reads: 1925
Print version:
