Medium range transmitter

Electronic Schematics > RF circuit > Medium range transmitter

---

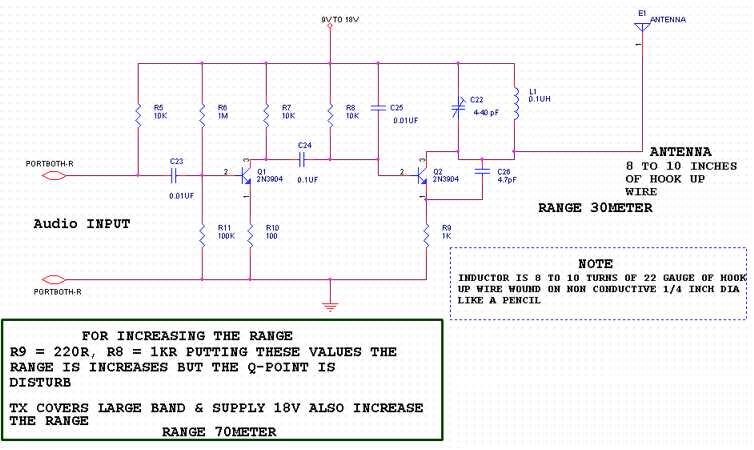

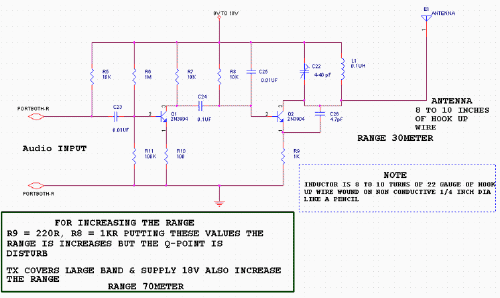

This is a medium range transmitter circuit diagram. This is also improved by changing the values of the resistor.

click on image for higher resolution

Download this schematic in Orcad format

Title: Medium range transmitter
electronic circuit
Source: www.electronics-lab.com
Published on: 2005-02-03
Reads: 1034
Print version:
