Dual Regulated Power Supply

Electronic Schematics > Power > Dual Regulated Power Supply

---

Notes:

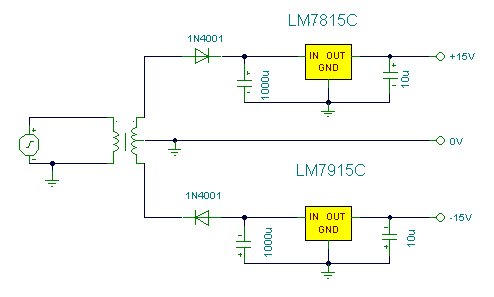

In this circuit, the 7815 regulatates the positive supply, and the 7915 regulates the negative supply. The transformer should have a primary rating of 240/220 volts for europe, or 120 volts for North America. The centre tapped secondary coil should be rated about 18 volts at 1 amp or higher, allowing for losses in the regulator. An application for this type of circuit would be for a small regulated bench power supply.

Title: Dual Regulated Power Supply
electronic circuit
Source: www.electronics-lab.com
Published on: 2005-02-03
Reads: 908
Print version:
