Triangle and Squarewave GeneratorHere is a simple triangle/squarewave generator using a common 1458 dual op-amp
that can be used from very low frequencies to about 10 Khz. The time interval
for one half cycle is about R*C and the outputs will supply about 10 milliamps
of current. Triangle amplitude can be altered by adjusting the 47K resistor, and
waveform offset can be removed by adding a capacitor in series with the output.

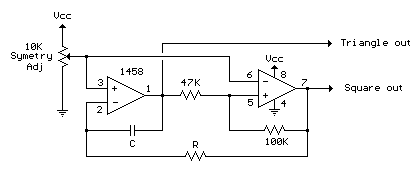

Triangle and Squarewave Generator circuit
Title: Triangle and Squarewave Generator
Source: unknown
Published on: 2007-07-21
Reads: 1526
