Audio / video switch
Description
This is an 8-input x-output audio/video switch module to be controlled from a computer, for example from the parallel port. Each audio/video output can be switched to any of the 8 inputs, separately. One module drives one audio/video output and has a 34-pin connector to plug into the system interface.You can use video OPA-s on the 4051 output instead. Note that you can get full integrated video multiplexers from Maxim.
Schematic diagram

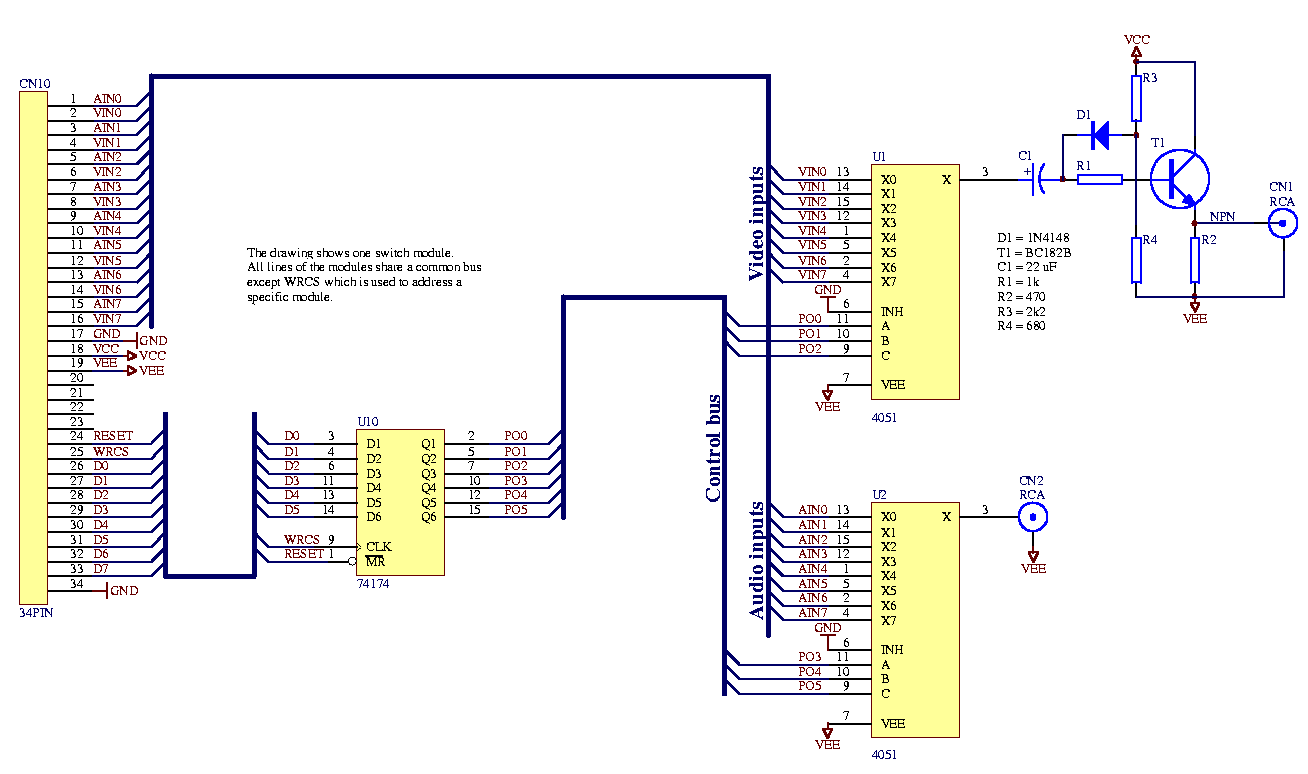

Title: Audio / video switch
electronic circuit
Source: http://jap.hu
Published on: 2006-04-12
Reads: 3642
