4 Band Double Tuned Preselector

Electronic Schematics > RF circuit > 4 Band Double Tuned Preselector

---

Circuit : David Sayles
Email: All enquiries via anc@mitedu.freeserve.co.uk

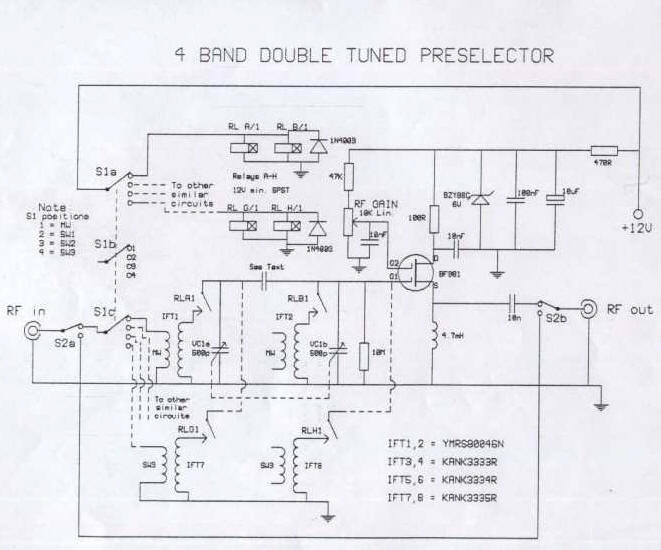

Circuit 4 Band Double Tuned Preselector

Notes:

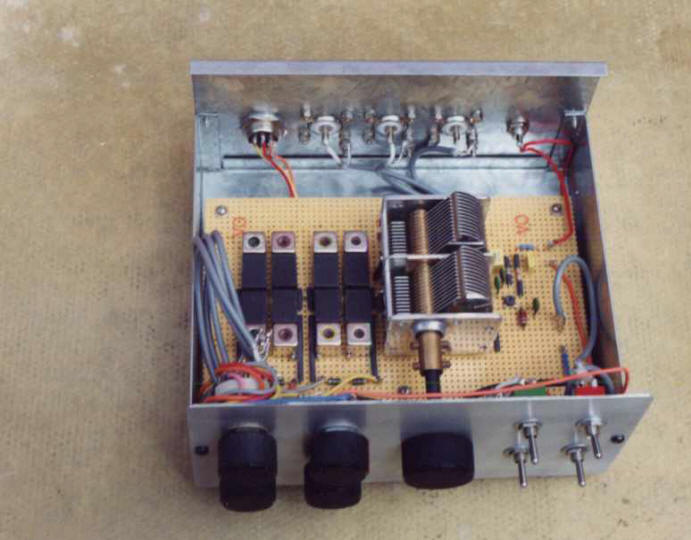

Once again, this is a project designed by David Sayles. The input can be from a longwire or a loop antenna. The unit covers MW and Sw to 30MHz. Click here for a picture of David's MW loop. Here a finished picture of this project:

Title: 4 Band Double Tuned Preselector
electronic circuit
Source: unknown
Published on: 2006-01-15
Reads: 2243
