LH0032 Video Amplifier
Electronic Schematics > Video and TV > LH0032 Video Amplifier

LH0032 Video Amplifier schematics

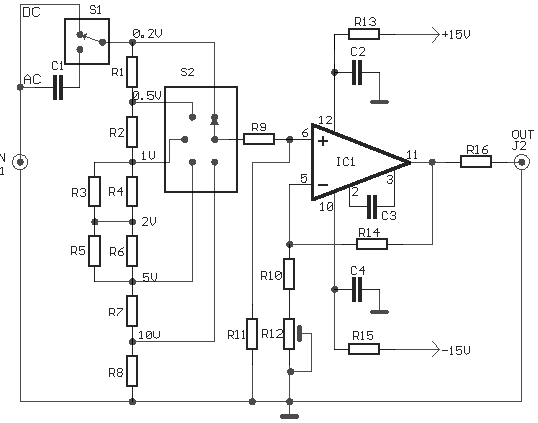

Figure. LH0032 Video Amplifier schematics

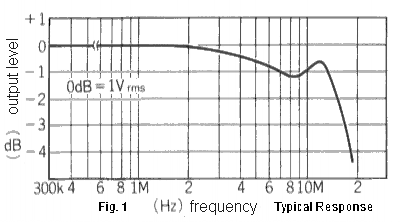

Video amplifier 1-Typical Response

Part List
R1= 15Kohm+15Kohm R12= 100ohm  trimmer C3=4.7pF ceramic
R2-3-4= 10Kohm R13-15= 47ohm IC1= LH0032
R5.....9= 1Kohm R14= 10Kohm S1= 1X2 mini switch
R10= 820ohm C1= 10uF 63V MKT S2= 1X6 sel.
R11= 1Mohm C2-4= 100nF 63V J1-2= BNC connector

Title: LH0032 Video Amplifier
electronic circuit
Source: unknown
Published on: 2005-08-15
Reads: 1337
Print version: Print version
