Light switch
General Description This project will let you make a switch that will be activated by light falling on a sensor. It is a very useful device and can be used in automatism’s, security systems, counters, remote controls etc. It is very sensitive, fast acting and reliable. The circuit uses a Light Dependent Resistor (LDR) as a sensor and three transistors to amplify the signals from the LDR and drive the relay which does the switching. |
Technical Specifications - Characteristics
Working voltage: ......... 12 VDC
Maximum current: ....... 50 mA
How it Works

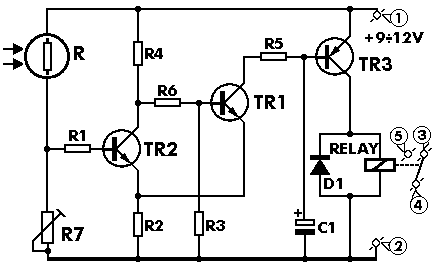

As you can see from the circuit diagram in the input of the circuit there is
a trimmer (R7) connected in series with the LDR in such a way as to form a voltage
divider. When light falls on the LDR it causes its resistance to change and this
causes the voltage across the LDR to change accordingly. These voltage changes are
used to change the state of the transistor TR2 switching it ON and OFF. The
output from TR2 drives TR1 and this in turn TR3 which drives the output relay. The
diode D1 protects the transistor from the back emf that is produced from the relay
coil when it is turned off. The trimmer R7 adjusts the sensitivity of the circuit
so it is possible to use it under widely different conditions. The circuit operates
from a 9-12 VDC power supply and the relay contacts are rated at 250 V/2 A.
Construction
First of all let us consider a few basics in building electronic circuits on
a printed circuit board. The board is made of a thin insulating material clad with
a thin layer of conductive copper that is shaped in such a way as to form the necessary
conductors between the various components of the circuit. The use of a properly
designed printed circuit board is very desirable as it speeds construction up
considerably and reduces the possibility of making errors. Smart Kit boards also
come pre-drilled and with the outline of the components and their identification
printed on the component side to make construction easier.
To protect the board during storage from oxidation and assure it gets to you in
perfect condition the copper is tinned during manufacturing and covered with a special
varnish that protects it from getting oxidised and makes soldering easier.
Soldering the components to the board is the only way to build your circuit and
from the way you do it depends greatly your success or failure. This work is not
very difficult and if you stick to a few rules you should have no problems. The
soldering iron that you use must be light and its power should not exceed the 25
Watts. The tip should be fine and must be kept clean at all times. For this purpose
come very handy specially made sponges that are kept wet and from time to time you
can wipe the hot tip on them to remove all the residues that tend to accumulate
on it. DO NOT file or sandpaper a dirty or worn out tip. If the tip can not be cleaned,
replace it. There are many different types of solder in the market and you should
choose a good quality one that contains the necessary flux in its core, to assure
a perfect joint every time. DO NOT use soldering flux apart from that which is already
included in your solder. Too much flux can cause many problems and is one of the
main causes of circuit malfunction. If nevertheless you have to
use extra flux, as it is the case when you have to tin copper wires, clean it very
thoroughly after you finish your work. In order to solder a component correctly
you should do the following: Clean the component leads with a small piece of emery
paper - Bend them at the
correct distance from the component body and insert the component in its place on
the board. You may sometimes find a component with heavier gauge leads than usual,
that are too thick to enter in the holes of the p.c. board. In this case use a mini
drill to
increase the diameter of the holes slightly. Do not make the holes too large as
this is going to make soldering difficult afterwards.
Take the hot iron and place its tip on the component lead while holding the end
of the solder wire at the point where the lead merges from the board. The iron tip
must touch the lead slightly above the p.c. board. When the solder starts to melt
and flow wait till it covers evenly the area around the hole and the flux boils
and gets out from underneath the solder. The whole operation should not take more
than 5 seconds. Remove the iron and leave the solder to cool naturally without blowing
on it or moving the component. If everything
was done properly the surface of the joint must have a bright metallic finish and
its edges should be smoothly ended on the component lead and the board track. If
the solder looks dull, cracked, or has the shape of a blob then you have made a
dry joint and you should remove the solder (with a pump, or a solder wick) and redo
it. Take care not to overheat the tracks as it is very easy to lift them from the
board and break them. When you are soldering a sensitive component it is good practice
to hold the lead from the component side of the board with a pair of long-nose pliers
to divert any heat that could possibly damage the component.
Make sure that you do not use more solder than it is necessary as you are running
the risk of short-circuiting adjacent tracks on the board, especially if they are
very close together.
After finishing your work cut off the excess of the component leads and clean the
board thoroughly with a suitable solvent to remove all flux residues that still
remain on it. You shouldn’t face any special problems with this project. The only
unusual component is the LDR and you should decide where you want to put your project
and how you are going to activate it as it will be necessary to leave a hole in
the case for the sensor and possibly orientated the whole case towards the light
beam. As usual start building the circuit with the resistors leaving the LDR for
the final stage. Mount the relay on the board and solder the transistors and the
diode in their places making sure that nothing went in the wrong place or the wrong
way round. When everything is in its place solder the LDR carefully, as it is very
fragile and can be easily damaged if overheated. Make the last visual check and
if you are satisfied that all is well you can connect the circuit to a power supply
or a battery of at least 9 VDC. Cover the sensitive surface of the LDR and turn
the trimmer till you hear the relay clicking. If you uncover the sensor the relay
should click again. You will probably have to read just the trimmer once the circuit
is cased and you are ready to use it in some application, in order to fine-tune
it to the conditions that you want it to operate in.
Warning
Smart kits are sold as stand alone training kits. If they are used as part of
a larger assembly and any damage is caused, our
company bears no responsibility.
While using electrical parts, handle power supply and equipment with great care,
following safety standards as described by international specs and regulations.
If it does not work
Check the power supply to make sure there are at least 9 VDC across the circuit,
and that the polarity is correct. Make sure the transistors and the diode are connected
the right way round. Check your work for possible dry joints, bridges across adjacent
tracks or soldering flux residues that usually cause problems.
Electronic Diagrams.
R = light resistor
R1 = 4,7 K
R2 = 1,2 K
R3 = 2,2 K
R4 = 1,2 K
R5 = 1,2 K
R6 = 2,7 K
R7 = 100 K
C1 = 10 μf/16V
TR1 = BC107-BC108 NPN (CV7644)
TR2 = BC107-BC108 NPN (CV7644)
TR3 = BC557-BC558-BC327 PNP
D1 = 1N4148 Diode
RELAY = 12V relay
