3 Line Mixer

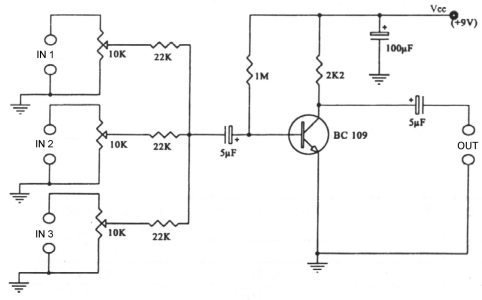

This project is a 3 or more lines mixer. For more than 3 inputs you can repeat the input parts (P=10K R=22K). It powered with 9Vdc.

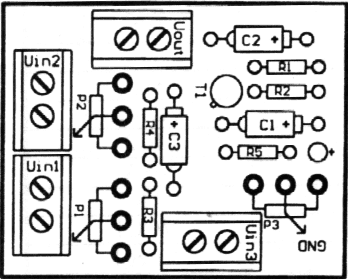

Componets Layout

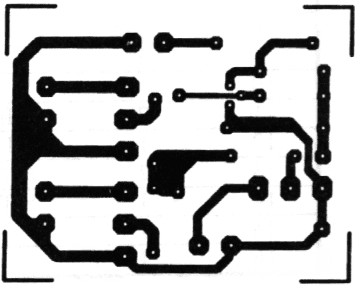

PCB (5,5cm x 4,4cm)
Title: 3 Line Mixer
electronic circuit
Source: www.electronics-lab.com
Published on: 2005-02-01
