1.5 Hour Lamp Fader (Sunset Lamp)

Electronic Schematics > Motor, light and power control > 1.5 Hour Lamp Fader (Sunset Lamp)

---

Similar to the one above, the sunset lamp comes on at full brightness and then slowly fades out over 1.5 hours time and stays off until power is recycled.

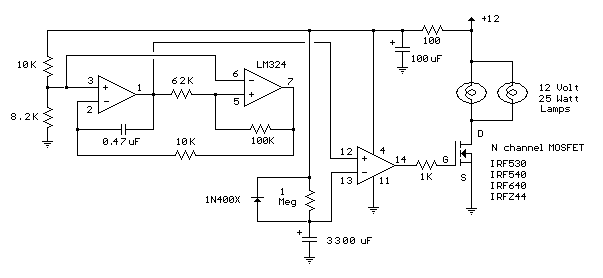

1.5 Hour Lamp Fader circuit

Title: 1.5 Hour Lamp Fader (Sunset Lamp)
electronic circuit
Source: unknown
Published on: 2007-07-21
Reads: 941
Print version:
