Digital Voltmeter

Electronic Schematics > Test and measurement > Digital Voltmeter

---

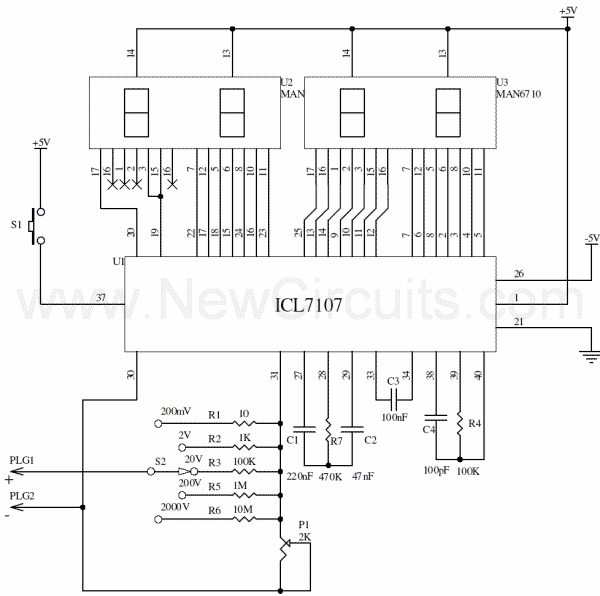

The ICL7107 is a 3 1/2 digit LED A/D convertor. It contains an internal voltage reference, high isolation analog switches, sequential control logic, and the display drivers. The auto-zero adjust ensures zero reading for 0 volts input.

Title: Digital Voltmeter
electronic circuit
Source: unknown
Published on: 2005-08-27
Reads: 4115
