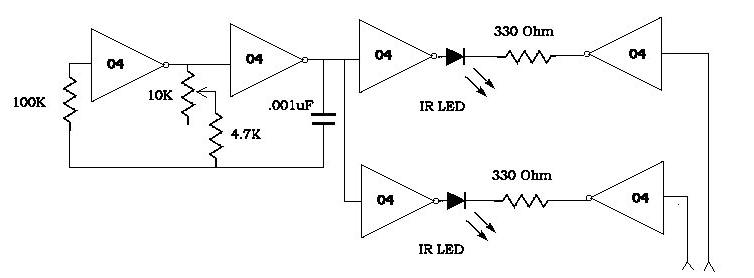

IR Detector for Robotics electronic circuit:

This circuit has only been tested with a 74HCT04 - other inverters have been known to not work.

The All unused inputs to 5V through 10K resistors (nominal).

Inputs fom MCU pins will turn on LEDs.

Title: IR Detector for Robotics
electronic circuit
Source: unknown
Published on: 2005-06-26
Reads: 2537
