Video Distributor Amplifier

Electronic Schematics > Video and TV > Video Distributor Amplifier

---

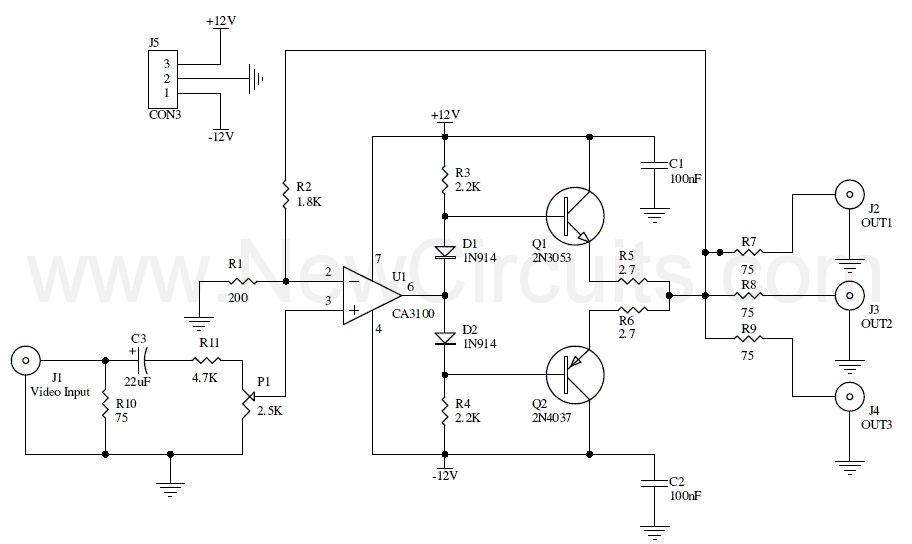

This circuit is useful to amplify and distribute video signals with low noise and without losses. The CA3100 is a fast opamp designed to amplify video signals. Set the P1 to control the input signal level to have a clear picture on the TV set.
