Self-powered Fast Battery-Tester
Electronic Schematics > Power > Self-powered Fast Battery-Tester

Tests 1.5 to 15 Volt cells

Two-LED display, no power supply required

Battery Tester

Parts:

R1______________2K2  1/4W Resistor
R2______________3R3  1/4W Resistor
R3_____________10R   1/4W Resistor
R4______________4K7  1/4W Resistor
R5_____________33K   1/4W Resistor
R6,R7_________100K   1/4W Resistors
R8____________220K   1/4W Resistor
R9____________330K   1/4W Resistor
R10___________500K   Trimmer Cermet

C1,C2__________10nF  63V Polyester Capacitors
C3-C7_________100nF  63V Polyester Capacitors
C8____________220µF  35V Electrolytic Capacitor

D1,D7___________LEDs Red 5mm. (see Notes)
D2-D6________1N4148  75V 150mA Diodes

Q1___________2N3819  General purpose FET
Q2,Q3_________BC337  45V 800mA NPN Transistors

IC1,IC2________7555 or TS555CN CMos Timer ICs

P1_____________SPST Pushbutton

SW1____________DPDT Switch

BUT____________Battery under test

Holder or clips to connect the Battery under test to the circuit

Device purpose:

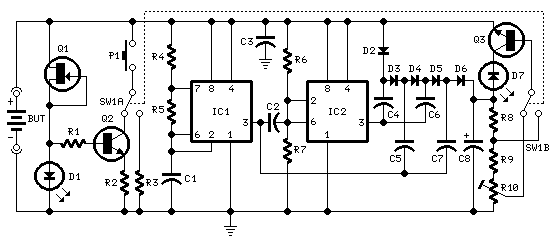

This circuit runs a fast battery test without the need of power supply or expensive moving-coil voltmeters. It has two ranges: when SW1 is set as shown in the circuit diagram, the device can test 3V to 15V batteries. When SW1 is switched to the other position, only 1.5V cells can be tested.

Testing 3V to 15V batteries:


  • Switch SW1 as shown in the circuit diagram.
  • Place the battery under test in a suitable holder or clip it to the circuit.
  • Wait some seconds in order to let C8 reach its full charge.
  • LED D1 illuminates at a constant intensity, independent of battery voltage.
  • If D1 illuminates very weakly or is fully off the battery is unusable.
  • If D1 has a good illumination, press P1 and keep an eye to LED D7. If D7 remains fully off, the battery is in a very good state.
  • If D7 illuminates brightly for a few seconds, the battery is weak. This condition is confirmed by a noticeable weakening of D1 brightness.
  • If D7 illuminates weakly for a few seconds but D1 maintain the same light intensity, the battery is still good but is not new.

Testing 1.5V batteries:


  • Switch SW1 in the position opposite to that shown in the circuit diagram.
  • Place the battery under test in a suitable holder or clip it to the circuit.
  • Wait some seconds in order to let C8 reach its full charge.
  • LED D1 illuminates very weakly only in presence of a new battery, otherwise is off.
  • Press P1 and keep an eye to LED D7. If D7 remains fully off the battery can be in very good state.
  • If D7 illuminates brightly for a few seconds, the battery is weak.
  • If D7 illuminates weakly for a few seconds, the battery is still good but is not new.
  • If you are suspecting a 1.5V cell to be completely discharged, a better test can be made wiring two 1.5V batteries in series, then running the 3V test.

Circuit operation:

FET Q1 provides a constant current generator biasing LED D1 and Q2 Base. In this manner D1 illuminates at a constant intensity, independent of battery voltage from 3 to 15V and Q2 (when P1 is closed) applies a constant current load of about 120mA to the battery. IC1 is a square wave generator oscillating at about 3KHz. IC2 acts as an inverter and drives, together with IC1 but in anti-phase, Diodes D2-D6 and Capacitors C4-C7, obtaining a voltage multiplication. C8 is charged by this raised voltage and R8-R10 form a voltage divider biasing the Base of Q3. When P1 is open, a very light load is applied to the battery under test and Q3 Base is biased in order to maintain LED D7 in the off state.
Closing P1, a 120mA load is applied to the battery under test. If the battery is not fully charged, its output voltage starts reducing: when this voltage falls 0.6V below the battery nominal voltage, Q3 Emitter becomes more negative than the Base, transistor is hard biased and D7 illuminates. Obviously, this state of affairs lasts a few seconds: the time spent by C8 to reduce its initial voltage to the new one, proportional to the voltage of the loaded battery. If the battery under test is in a good charging state, its output voltage did not fall under a 120mA loading current, so LED D7 stays off.
When testing 1.5V batteries, the circuit formed by Q1, Q2, D1, R1 & R2 doesn't work well at this supply voltage, so a 150mA load current is applied to the BUT by means of the 10 Ohm resistor R3 after switching SW1A. Q3 bias is also changed via SW1B.

Notes:

  • To set-up this circuit apply a 6 to 7.5V voltage source to the input and trim R10 until LED D7 is fully off (without pushing on P1).
  • 1.5V test position needs no set-up.
  • CMos 555 ICs must be used for IC1 & IC2 because they are the only cheap devices able to oscillate at 1.5V supply or less.
